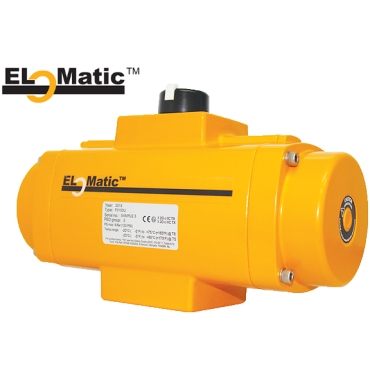

Pneumatic actuator ELOMATIC FS type quarter turn single acting

EL-O-MATIC, elomatic, emerson, Pneumatic valve actuator single acting, series FD, Econosto 79612, Eriks 12697039, 12697040, 12697041, 12697042, 12697043, 12697044, 12697045, 12697046, 12697047, 12697048, 12697049, 13497916, 13497917

The shown images can differ from the actual product. Technical data & prices are subjected to be changed without prior notice.

Model:	Single acting FS (spring)	Material body:	Cast Aluminium
Brand:	EL-O-Matic	Material coat:	Polyurethane powder coating
control pressure:	0,2 - 8,3 bar	Material Fasteners:	Stainless steel
Temperature:	-20°C to 80°C	European Directives	ATEX PED & Machinery Directive
Solenoid flange:	VDE/VDI 3845(NAMUR)	Valve flange:	ISO 5211/DIN3337

Rack and Pinion Pneumatic Actuators.

Torque value given in the order list is valid with 6 bar control pressure.

For detailed information, consult the technical data sheets.

The actuators shown in the order list are delivered without inserts (except FD12)

SKU	MXT-ELOMFS0000

Body material	Aluminium

SKU

Product Name

€ / Piece

Qty

MXT-ELOMFS0012 Pneumatic actuator ELOMATIC single act FS12 torque 10<>7(Nm) ISO pad F04 square 9mm

€289.01

MXT-ELOMFS0025 Pneumatic actuator ELOMATIC single act FS25 torque 16<>8(Nm) ISO pad F03/F05 (insert F25)

€354.25

MXT-ELOMFS0040 Pneumatic actuator ELOMATIC single act FS40 torque 30<>16(Nm) ISO pad F05/F07 (insert F40)

€416.18

MXT-ELOMFS0065 Pneumatic actuator ELOMATIC single act FS65 torque 45<>23(Nm) ISO pad F05/F07 (insert F60)

€520.50

MXT-ELOMFS0100 Pneumatic actuator ELOMATIC single act FS100 torque 68<>36(Nm) ISO pad F05/F07 (insert F100)

€536.55

MXT-ELOMFS0150 Pneumatic actuator ELOMATIC single act FS150 torque 109<>59(Nm) ISO pad F07/F10 (insert F150)

€690.90

MXT-ELOMFS0200 Pneumatic actuator ELOMATIC single act FS200 torque 148<>78(Nm) ISO pad F07/F10 (insert F200)

€880.53

MXT-ELOMFS0350 Pneumatic actuator ELOMATIC single act FS350 torque 260<>141(Nm) ISO pad F07/F10 (insert F350)

€1,146.60

MXT-ELOMFS0600 Pneumatic actuator ELOMATIC single act FS600 torque 439<>235(Nm) ISO pad F10/F12 (insert F600)

€1,812.52

MXT-ELOMFS0950 Pneumatic actuator ELOMATIC single act FS950 torque 683<>410(Nm) ISO pad F10/F14 (insert F950

€2,407.86

MXT-ELOMFS1600 Pneumatic actuator ELOMATIC single act FS1600 torque 1149<>658(Nm) ISO pad F16 (insert F1600)

€3,902.86

MXT-ELOMFS2500 Pneumatic actuator ELOMATIC single act FS2500 torque 1900<>1187(Nm) ISO pad F16 (insert F2500)

€5,411.06

MXT-ELOMFS4000 Pneumatic actuator ELOMATIC single act FS4000 torque 3047<>1961(Nm) ISO pad F25 ( insert F4000)

€9,604.98
